Find Out Whether Your IAT Sensor or Wiring Is Faulty

An intake air temperature (IAT) fault code does not automatically mean the sensor needs replacing. Compare cold-engine scan data with the air around the vehicle, inspect the connector, then test the sensor and its circuit separately. Replace only the component those tests identify as faulty.

Choose your code and circuit type to see the next diagnostic step.

“Circuit high” means high signal voltage, not hot intake air. On a conventional negative-temperature-coefficient (NTC) IAT circuit, higher voltage represents colder air; lower voltage represents hotter air. HELLA explains this resistance-and-voltage relationship.

Identify Which Temperature Sensor You Are Testing

The IAT sensor reports intake-air temperature to the engine controller. On gasoline engines, that information helps the controller adjust mixture formation and ignition timing. HELLA lists starting problems, reduced power and increased fuel consumption as possible fault symptoms, but none proves the sensor is defective.

Before testing, identify the exact year, engine and sensor in the wiring diagram. Temperature sensing may be housed in a separate intake sensor or integrated into another assembly:

Sensor Arrangement	What to Identify Before Testing
Separate IAT sensor	Its connector and temperature-sensing terminals
Combined MAF/IAT	The IAT terminals, not the airflow terminals
Combined MAP/IAT	The IAT terminals, not the pressure terminals

Bosch documents temperature-sensor integration in its air-mass meters, and HELLA describes combined manifold pressure/temperature sensors.

Some engines have multiple intake or charge-air temperature sensors. IAT1, IAT2 and charge-air cooler temperature are not interchangeable test points: Ford’s 2024–2025 gasoline OBD summary documents separate circuits and monitors.

Stop before electrical testing if you cannot identify the correct connector pins. A combined sensor’s pressure or airflow terminals are not the IAT terminals.

Compare Cold-Soak Readings Before Starting the Engine

You need a scan tool that displays live IAT data, a thermometer and, for later circuit checks, a digital multimeter plus vehicle-specific service information.

1. Record all stored and pending codes and available freeze-frame data before clearing anything.
2. Let the vehicle sit overnight without running the engine. Avoid a block heater or direct sun warming one part of the vehicle.
3. Before starting, switch the ignition on and record IAT, engine coolant temperature and measured air temperature near the vehicle. Confirm that all readings use the same units.
4. Look for an implausible outlier, not exact equality.

Intake-air and coolant temperatures should be similar after a cold soak, a comparison described in Vehicle Service Pros’ scan-data guidance. Use the OEM’s allowable difference for a pass/fail decision; there is no universal tolerance supplied here.

For example, if surrounding air and coolant both read near 20°C, but IAT reports −40°C, investigate the IAT circuit. That is a diagnostic example, not proof of a failed sensor. On a conventional NTC circuit, an open sensor, disconnected connector or broken wire can produce this high-voltage/cold-end pattern. A very hot reported temperature on a genuinely cold engine points toward the low-voltage side of the diagnosis.

Do not apply the cold-soak comparison immediately after driving. Let the engine and intake cool first. Also check whether the displayed parameter is actual sensor data or a controller-substituted value under a fault condition.

Use the Fault Code to Choose the Circuit Test

Code	Meaning	Next Diagnostic Direction
P0111	IAT1 range/performance	Check plausibility and OEM correlation test
P0112	IAT1 circuit low	Investigate low signal voltage
P0113	IAT1 circuit high	Investigate high signal voltage
P0114	IAT1 intermittent/erratic	Watch data during harness movement

These meanings are documented in Ford’s 2024–2025 gasoline OBD summary linked above. P0112 can involve a short or sensor fault; P0113 can involve an open circuit or poor connection. Use your vehicle’s diagnostic chart for its actual thresholds and test sequence.

The voltage thresholds vary by application:

Ford Application	P0112 Threshold	P0113 Threshold
2002 model-year 7.3L diesel	Below 0.13 V, typical	Above 4.60 V, typical
2024–2025 gasoline summary	Below 0.244 V	Above 4.96 V

The 2002 diesel summary supplies the older diesel figures. The 2024–2025 gasoline summary supplies the later figures and lists five seconds to register the malfunction. These are monitor thresholds—not normal-temperature target voltages or universal specifications.

Inspect the Connector Before Condemning the Sensor

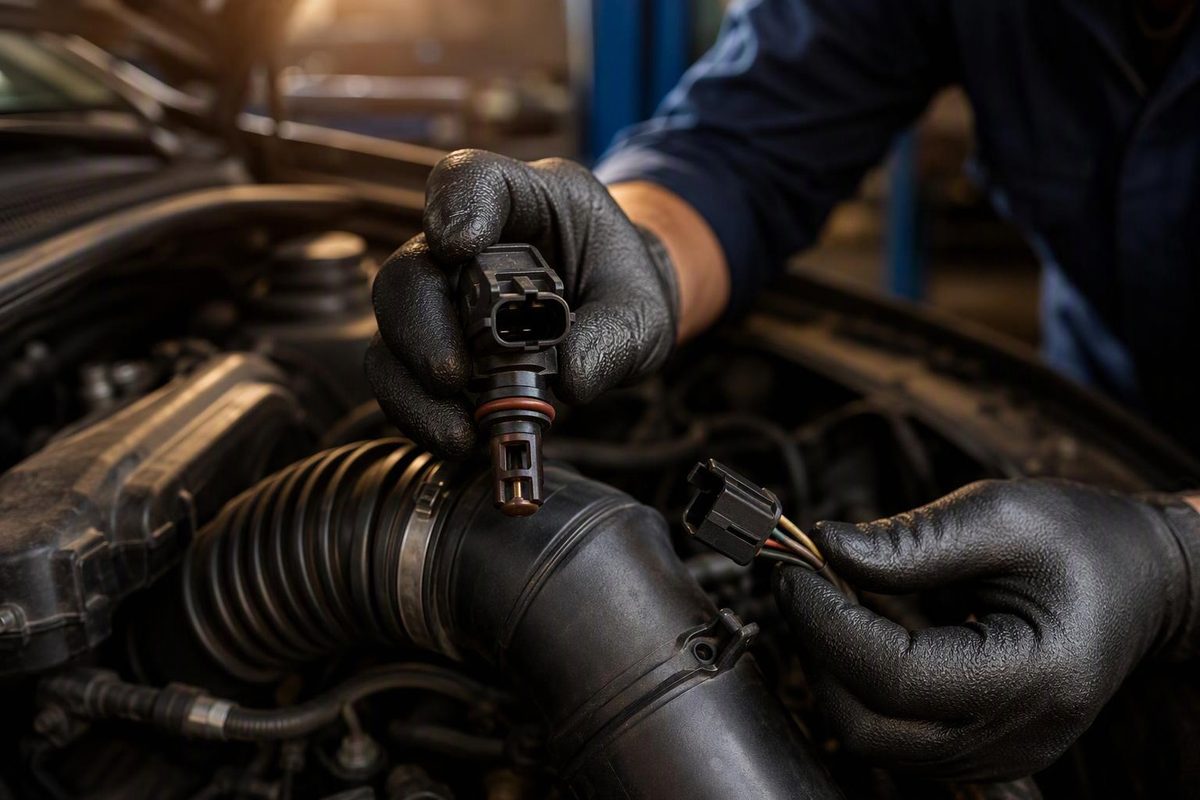

Switch the ignition off before disconnecting anything. Check for an incompletely seated plug, corrosion, moisture, pushed-back terminals, damaged locks and wiring rubbed through near the intake housing.

Connector faults can cause an IAT code. An August 2023 Stellantis STAR case records P0113 associated with a pushed-out or spread sensor-return terminal. That case illustrates the failure mode; it does not establish applicability to every Stellantis vehicle.

With the connector reattached, ignition on and engine off, gently move the accessible harness while watching IAT data. Abrupt jumps suggest an intermittent fault in the area being disturbed. They do not by themselves prove which terminal, wire or component has failed. Do not force meter probes into terminals and spread them.

Test the Sensor and Harness Separately

The following checks apply to a conventional NTC sensor. Do not assume they apply to a digital output; use the exact assembly’s diagnostic procedure.

Compare Sensor Resistance With the OEM Chart

With ignition off and the sensor electrically disconnected, measure resistance across the identified temperature-sensing terminals. Compare it with the OEM resistance-versus-temperature chart at the sensor’s actual temperature.

Gentle warming should reduce resistance smoothly. An open reading, near-zero resistance at an ordinary temperature, or a value outside the specified chart supports a sensor fault. HELLA’s guide stresses manufacturer-specific resistance values; no universal resistance figure is supplied here.

Check Harness Voltage and Continuity as Specified

Where the OEM procedure specifies it, check the disconnected harness with ignition on. A conventional IAT input commonly has approximately 5 V across its signal and sensor-return terminals when disconnected. This is not the expected voltage of a connected sensor at every temperature.

HELLA describes this check and recommends wiring continuity and short-circuit testing with the control-unit connector removed. Follow the vehicle’s prescribed module-disconnection procedure before continuity tests.

Never use an ohmmeter on a powered circuit. Do not apply battery voltage or bridge unidentified terminals.

If sensor resistance matches the chart but harness checks fail, repair the circuit first. Missing voltage alone does not justify replacing the engine controller.

Repair the Proven Fault and Verify the Result

Replace the IAT sensor—or the combined assembly if it is not separately serviceable—when testing establishes a sensor fault and its circuit passes. Repair confirmed terminal or wiring damage instead. Cleaning does not cure an open circuit; use only a cleaning method approved for the exact sensor assembly.

After repair, repeat the cold-soak comparison, check for stable live data during harness movement, and run the manufacturer’s verification procedure. Recheck pending codes rather than relying only on an extinguished warning lamp.

If IAT now tests correctly but the original symptom remains, continue with the relevant rough-idle diagnosis or engine power-loss tests instead of replacing another temperature sensor.
