Test the VGT actuator, turbo vanes and control circuit separately before replacing anything

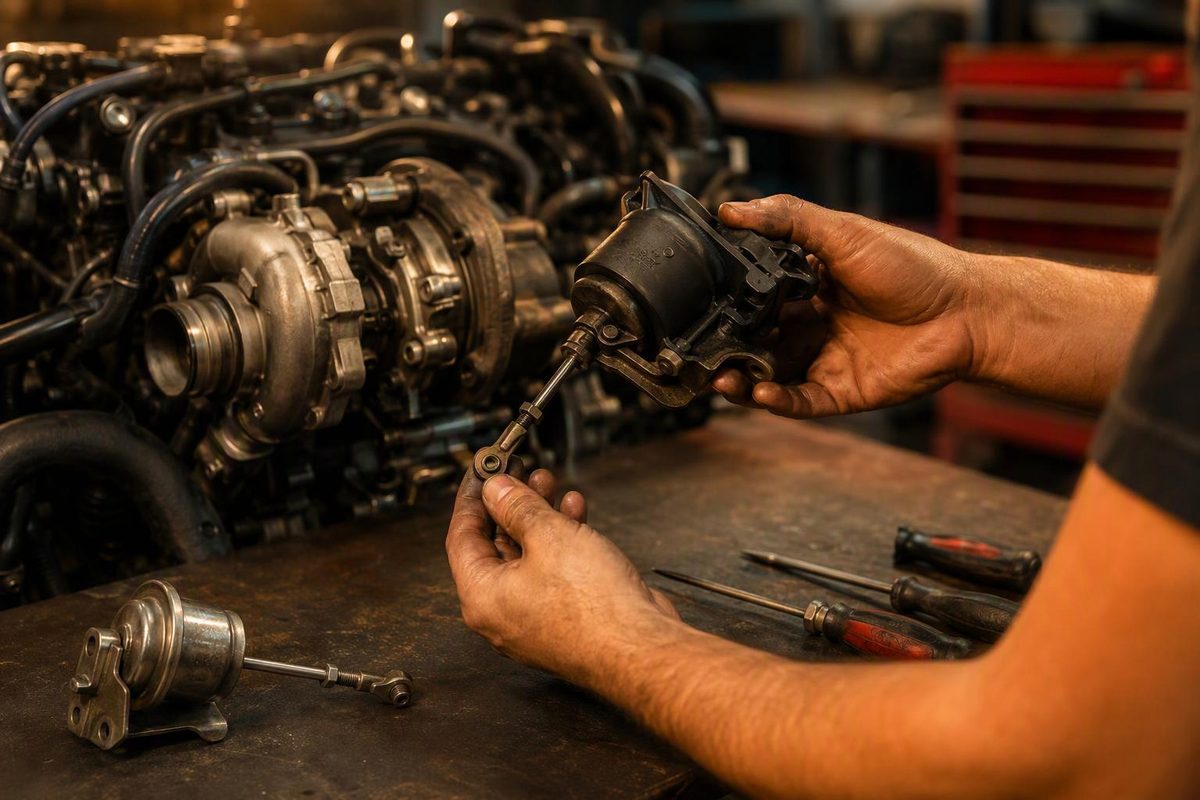

A variable-geometry turbocharger (VGT) actuator changes the position of the turbo’s vanes or nozzle mechanism. The engine control module uses that movement to regulate boost. On some diesel applications, vane position also supports EGR flow, exhaust warm-up, diesel particulate filter regeneration and exhaust braking. GM describes those functions on the 2020 L5P Duramax and says its actuator performs a learn sweep after shutdown (GM bulletin 19-NA-091).

This guide centers on electronic VGT actuators. A vacuum- or pressure-operated actuator requires different hose, solenoid and pressure tests.

An actuator-related code does not prove that the actuator has failed. The same symptom can come from:

• A failed electric actuator or position sensor
• Sticking turbo vanes, a binding sector gear or damaged linkage
• Low system voltage, poor power or ground, damaged wiring, or lost communication
• Incorrect actuator-to-turbo alignment
• A missing or failed installation or calibration routine
• Incorrect control-module or actuator software
• A separate charge-air leak, exhaust leak or sensor fault that prevents expected boost

The useful question is not “Does it need an actuator?” It is “Does commanded vane position become actual vane position—and if not, where is movement being lost?”

Symptoms that justify testing

A VGT control fault may produce a check-engine light, reduced power, slow boost response, overboost or underboost, or abnormal exhaust-brake operation. Because some engines use vane position during exhaust warm-up and regeneration, a control fault may also contribute to aftertreatment problems.

Depending on the vehicle, codes may include P003A, P0046, P00AF or U010C. FCA listed those four codes for certain 2015 Ram 2500 and 3500 trucks with the 6.7L Cummins, while directing technicians to run the applicable scan-tool diagnostics before using its actuator-replacement procedure (FCA bulletin 09-005-22 Rev. A).

Do not apply that bulletin or its repair to another year or engine. Code definitions, enabling conditions and turbo designs vary. Confirm the VIN, engine code and service information first.

Run this diagnostic sequence

1. Save evidence before clearing anything

Record all engine and communication codes, their status, freeze-frame data and the conditions in which the fault appeared. Note whether it happened during cranking, acceleration, an exhaust-brake event, regeneration or immediately after turbo work.

Check for an OEM bulletin by VIN, engine, build date and actuator part number. Software can matter: Cummins directed technicians to reflash actuator part numbers 6463632 or 6463633 on specified 2024 B6.7, X12 and X15 engines built from December 2023 through August 2024 when fault 1894 or 5177 was present. The bulletin specifically says not to replace the actuator (Cummins TSB 240168).

Stop point: If a bulletin exactly matches the engine, build range, actuator part number and codes, follow it before mechanical disassembly.

2. Test the electrical foundation

Inspect the actuator connector and harness for loose pins, corrosion, heat damage, oil contamination and chafing near the turbo. Test battery condition, charging performance and cable connections. Use the correct wiring diagram to verify actuator power, ground and network or control circuits; there is no universal pinout or resistance value.

Low voltage can look like a turbo fault. GM documented P0046 on certain 2017–2022 L5P and L5D trucks when cranking voltage prevented the actuator learn procedure from completing. Its correction includes checking both batteries individually, clamps and electrical connections rather than installing parts (GM bulletin 21-NA-113).

Stop point: Repair low voltage, excessive voltage drop, connector damage or a communication fault before judging actuator movement.

3. Compare commanded and actual vane position

With a capable bidirectional scan tool, graph the available parameters for:

• Commanded or desired VGT position
• Actual VGT or turbo vane position
• Desired and actual boost or manifold pressure
• Engine speed and load

Run the OEM actuator sweep or output-control test with the engine state specified by the service procedure. Look for smooth tracking throughout the commanded range, not merely movement at one point.

As one platform-specific example, GM tells technicians working on the listed L5P and L5D applications to command vane position from 20% to 90% and back to 20%, then verify that reported position rises and falls with the command (GM bulletin 21-NA-113). Those percentages are not a universal VGT specification.

Use the result to choose the next branch:

Test result	Next diagnostic branch
Actual position follows command, but boost does not	The actuator controlled position during this test. Check charge-air leaks, intake or exhaust restrictions, exhaust leaks and pressure-sensor plausibility before condemning it.
Actual position is fixed and actuator communication is absent	Diagnose actuator power, ground and data circuits.
Actual position moves slowly, sticks or cannot reach an endpoint	Separate an actuator fault from binding vanes or linkage.
The sweep works after a relearn, but the fault returns during cranking	Recheck batteries, cable voltage drop and cranking voltage.
The fault began after actuator installation	Check indexing, installation sequence and calibration before assuming the new part is defective.

4. Separate the actuator from the turbo mechanism

Only detach the actuator if the exact service procedure permits it. Let the turbo and exhaust cool first. Some systems require the actuator or sector gear to be placed in a specified position before removal.

When the service procedure calls for separation:

1. Move the turbo lever or sector gear only through its specified travel.
2. Check for binding, rough spots or an inability to reach an endpoint.
3. Test the detached actuator with the prescribed scan-tool routine if the manufacturer supports doing so.

A freely moving turbo mechanism paired with an actuator that cannot complete its commanded travel shifts attention toward the actuator or its circuit. An actuator that passes its test while the turbo mechanism binds shifts attention toward the vane assembly, linkage or turbocharger.

Do not force a seized mechanism or spray penetrant into a VGT. Cleaning and lubrication instructions are turbo-specific.

5. Install and calibrate in the correct order

An electronic VGT actuator is not always a bolt-on-and-drive component. Depending on the engine, replacement may require:

• A scan-tool “install actuator” routine
• Exact mechanical indexing of the actuator and sector gear
• An initial-position learn or calibration
• Updated actuator software
• A final commanded-position sweep

Cummins documented good actuators being misdiagnosed after incorrect installation or calibration on specified B6.7, L9, X12 and X15 engine families. Mounting the actuator during the wrong step or misaligning the sector gear could make the procedure fail. For those listed engines, Cummins required removing the actuator, unplugging it for 30 seconds, returning the sector gear to the specified fully clockwise position and restarting the installation from the beginning (Cummins TSB 230020).

Do not copy that positioning procedure to an unlisted engine. Use the service information for the exact VIN or engine serial number and follow its power-supply requirements during programming or calibration.

What confirms the repair?

After recording the original evidence, clear the codes and complete the required learn and output-control tests. Confirm that actual position follows commanded position without sticking or losing communication. Then test under the operating condition that originally set the fault while graphing vane position and desired-versus-actual boost.

For a 6.7L Cummins, use the actuator result alongside vane movement, charge-air integrity and oil-supply checks before deciding between an actuator and a complete turbo. The broader decision is covered in 6.7 Cummins turbo replacement and fitment.

Replace the actuator only when its electrical supply is sound, the turbo mechanism moves correctly, applicable software and calibration are complete, and the actuator still fails its specified movement or communication test.
