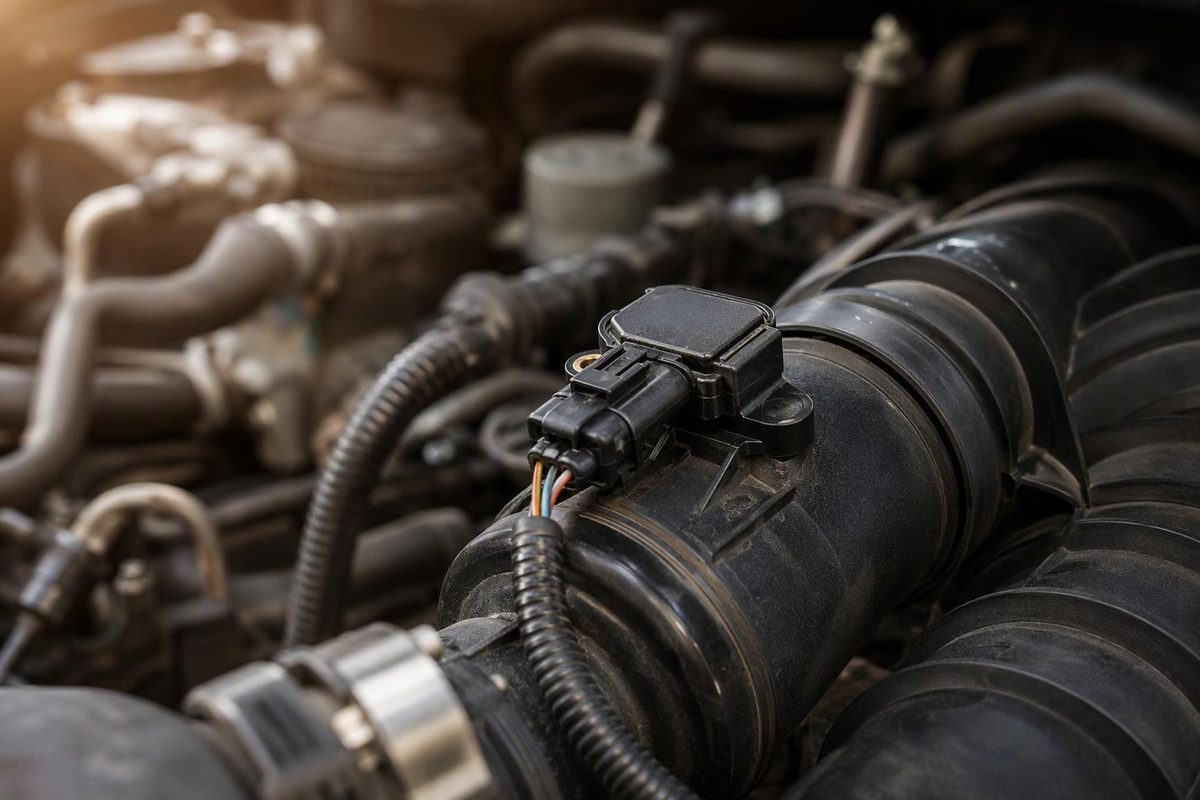

What Is a TMAP Sensor—and How Do You Check It?

A TMAP sensor is a combined temperature and manifold absolute pressure sensor. It measures both air pressure and air temperature at its mounting point and sends that information to the engine control unit. Think of it as a MAP sensor and an intake air temperature (IAT) sensor packaged together. HELLA describes this combined design; TekniWiki calls it a T-Map sensor.

Those readings help the controller calculate intake-air mass or manage turbocharging, depending on the engine. A pressure-related code or loss of power does not automatically prove the TMAP sensor has failed.

TMAP vs. MAP vs. IAT

Sensor	What it measures
MAP	Manifold absolute pressure
IAT	Intake air temperature
TMAP	Both pressure and temperature in one assembly

In a common four-wire TMAP design, the connections are power supply, ground, pressure signal and temperature signal. Pin positions are not standardized—use the wiring diagram for your exact engine before probing. Some pressure sensors also use a frequency-based signal rather than a conventional analog voltage. TekniWiki explains these electrical differences.

Where is the TMAP sensor located?

Look in the vehicle-specific component diagram, not just for a four-pin connector. A combined sensor may be mounted in the intake manifold; a turbocharged engine may also have a pressure sensor in the charge-air tract before the throttle. Turbocharged gasoline engines often use pressure sensing both upstream and downstream of the throttle, so identifying which sensor a code refers to matters. HELLA and TekniWiki describe these arrangements.

Location also changes what a running pressure reading means. Do not apply an intake-manifold idle-vacuum expectation to a sensor mounted ahead of the throttle.

What does “absolute pressure” mean?

Absolute pressure is measured from a perfect vacuum, not from atmospheric pressure. A conventional boost gauge usually reads pressure relative to the surrounding atmosphere.

For example, if local atmospheric pressure is 100 kPa and the sensor reports 200 kPa absolute, that represents 100 kPa of gauge boost—not 200 kPa of boost. Atmospheric pressure varies, so 100 kPa is an example, not a universal engine-off specification. TekniWiki explains absolute versus relative readings.

What to check before replacing it

Possible pressure-sensor faults include jerking at partial load, reduced power and implausible, low or high signal codes. The same symptoms can come from missing supply voltage, damaged wiring or poor connectors. A plausible but inaccurate reading may not set a sensor code at all. TekniWiki’s diagnostic guidance covers these distinctions.

Use this order:

1. Identify the engine and sensor. Record the model year, engine, exact codes and freeze-frame conditions before clearing anything. Confirm whether the fault concerns manifold pressure, charge-air pressure or the combined sensor’s temperature circuit.
2. Inspect with the ignition off. Check the connector latch, terminals and harness for looseness, corrosion or damage. Repair an obvious connection fault before judging the sensor.
3. Check pressure with ignition on, engine off. After pressure has equalized, the reading should be consistent with local atmospheric pressure within the manufacturer’s tolerance. Confirm that the scan tool displays absolute pressure, and remember that some controllers display a substitute value after detecting a fault.
4. Test the relevant circuit. Using the correct diagram, check supply, ground and the affected signal against OEM specifications. For continuity or resistance checks, switch power off and isolate the circuit as directed by the service procedure.
5. Separate inaccurate sensing from a real pressure problem. Where the service procedure permits, compare sensor output with a controlled pressure or vacuum source, staying within the sensor’s specified range. If scan data freezes at a substitute value, follow the service procedure to check the electrical output instead. If circuit and pressure-response checks pass, investigate intake or charge-air leaks and boost-control faults rather than assuming the sensor is bad. TekniWiki documents these pressure-test principles and substitute-value limitations.

For the temperature side, see intake air temperature sensor testing.

There is no universal TMAP voltage specification

As one specific example, Bosch’s PST 3, part 0261.230.280, has a 0.2–3 bar absolute measuring range, a 4.75–5.25 V supply specification and a 0.4–4.65 V pressure-output range at a 5 V supply. Its temperature element has a separate resistance curve. Those numbers apply to that sensor—not every four-pin TMAP. Bosch publishes the specifications and pinout.

Replace the TMAP only when testing identifies an inaccurate or failed sensor with its supply, ground and wiring verified. Match the replacement to the vehicle application and calibration, not merely the connector shape.
